ROHR2fesu -FEM


ROHR2fesu - FEM module


FESU stands for Finite Elemente Analyse for Substructures

This course is aimed at those who need to analyze components not covered by any code, via FEM. You will

learn how to define and input geometry for components into your global line model and how to handle and
interpret results. You will also be informed regarding the limitations of the module

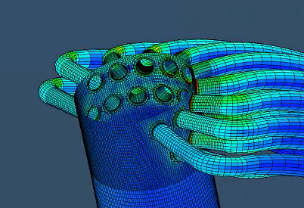

SKIOS ROHR2 SINETZ PROBAD CAEPIPE PIPE STRESS ANALYSIS-Fesu-Octopussy

Agenda


   • ROHR2 fesu overview
   • Steps in a ROHR2 fesu calculation
   • Modelling of a substructure
      o Types of connections
      o Modifying connections
      o Introducing additional features
   • Interaction with ROHR2 / framework
      o Use of loads from static analysis
      o Use of flexibility from FE-Structure
   • ROHR2 fesu functions
   • Results
      o Stress evaluation EN13445/ASME8-Div2
      o Automatic creation of reports

      o Weld fatigue evaluation Ch.18 EN13445
   o Report templates



Prerequisites:  ROHR2-Part 1 training or similar, basic understanding of FEM


Course length: 1 day (09.00-17.00)


Course Fee for individual participant: 750 € (7 500 SEK)


Language: Instructor speaks Swedish and/or English


SKIOS ROHR2 SINETZ PROBAD CAEPIPE PIPE STRESS ANALYSIS Room_Chair
SKIOS ROHR2 SINETZ PROBAD CAEPIPE PIPE STRESS ANALYSIS Pencils

General information


Facilities: Most of SKIOS's training courses are held Online using Microsoft Teams as a platform.



Schedule: Normally the training courses are scheduled to start between 08.30 - 09.00 and will end at approximately 16:30 - 17.00.



Course Fee: The fee is valid for one attendee excluding VAT. The fee includes training documentation and required training licenses.



Registration: Please register online (click "Enroll/Register-tab" above).

A confirmation will be mailed to you shortly after the registration form is received and administrated.
A final training course confirmation containing instructions, etc., will be sent to you, a couple of days before the training start date.

Since the COVID-19 outbreak, a majority of SKIOS's training are held ONLINE.



Terms and Conditions:
Course registration is binding.

Payment terms are 30 days net.


Cancellation Policy
– If cancellation is received more than 10 days before the course, 50% will be invoiced.
– If cancellation is received less than 10 days before the course, 100% will be invoiced.

Please send your cancellation notice to info@skios.se.


Skios Engineering reserves the right to cancel the training course due to low enrolment or other circumstances which would make the course non-viable. In the event of a cancellation, we will inform you approximately 10 days before the start of the course.
We also disclaim liability for typographical errors in the course catalog or course descriptions on our website.
